    150kgh SS 304 Monofilament Extruder Machine PP Cement Fiber Use

    Ask Lasest Price
    Brand Name : LEAP
    Model Number : RS190
    Certification : CE/ISO90001
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 50 sets per year
    Delivery Time : 90 working days
    • Product Details
    • Company Profile

    150kgh SS 304 Monofilament Extruder Machine PP Cement Fiber Use

    Monofilament Extrusion Machine for PP cement fiber 150kgh With Different Size


    Product Description:

    1. Extruder: 1 set

    (1) Screw diameter: 110 mm,

    (2) L:D: 33:1, Material of screw: 38CrMoALA;

    (3) Hard tooth reducer: Jiangyin Gearbox Manufactuer Co., Ltd

    (4) Filter: Automatic screen changer.

    (5) Pressure automatic feedback system can adjust the screw speed automatically.

    (6) Material of barrel heater: Far infarad

    (7) Equip 100kg stainless steel hopper

    (8) Electric heating round spinneret: 1 set

    (9) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.


    2. Queching tank: 1 set

    (1) The tank is made by SS 304.

    (2) Material of distributing roller: stainless steel


    3. Seven roller stretching unit A

    (1) Seven roller variable diameter rollers, the working width 800mm,

    There are five rollers are covered with rubber to resist skidding.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.

    (3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

    (4) Built-out oil lubrication system which makes the gears runs steady.


    4. Double layer hot blast stretching oven: 1 set

    (1) Fan power: 2.2KW×4 sets

    (2) Heating power: 23KW×2

    (3) Oven length: 4000 mm


    5. Seven roller stretching unit B.

    (1) Seven roller variable diameter rollers, the working width 800mm.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.

    (3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.


    6. Single layers hot blast stretching oven: 1 set

    (1) Fan power of each oven: 2.2KW×2 sets

    (2) Heating power: 30KW

    (3) Oven length: 5000mm


    7. Seven roller stretching unit C.

    (1) Seven roller variable diameter rollers, the working width 800mm.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.

    (3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.


    8. Waster yarn collectors: 1 set

    (1) Torque motor power: 80KG.cm


    9. Spindle winder: 2 spindles.

    (1) The size of bobbin is according to customer’s request.


    10. Total installation power: 250KW


    11. Overall size: 38000×2500×2500mm


    Specification:


    Screw diameterΦ90mm
    Raw materialPP ChipsFilament sizecustomzied
    Capacity150Kg/HFilament shapeprofile
    Screw L:D33:1Stretching unit3 sets
    Screw material38CrMoALAWinder2 spindles
    Max linear speed140m/minInstillation power250Kw
    Nozzle holes50 holesOverall size38×2.5×2.5m

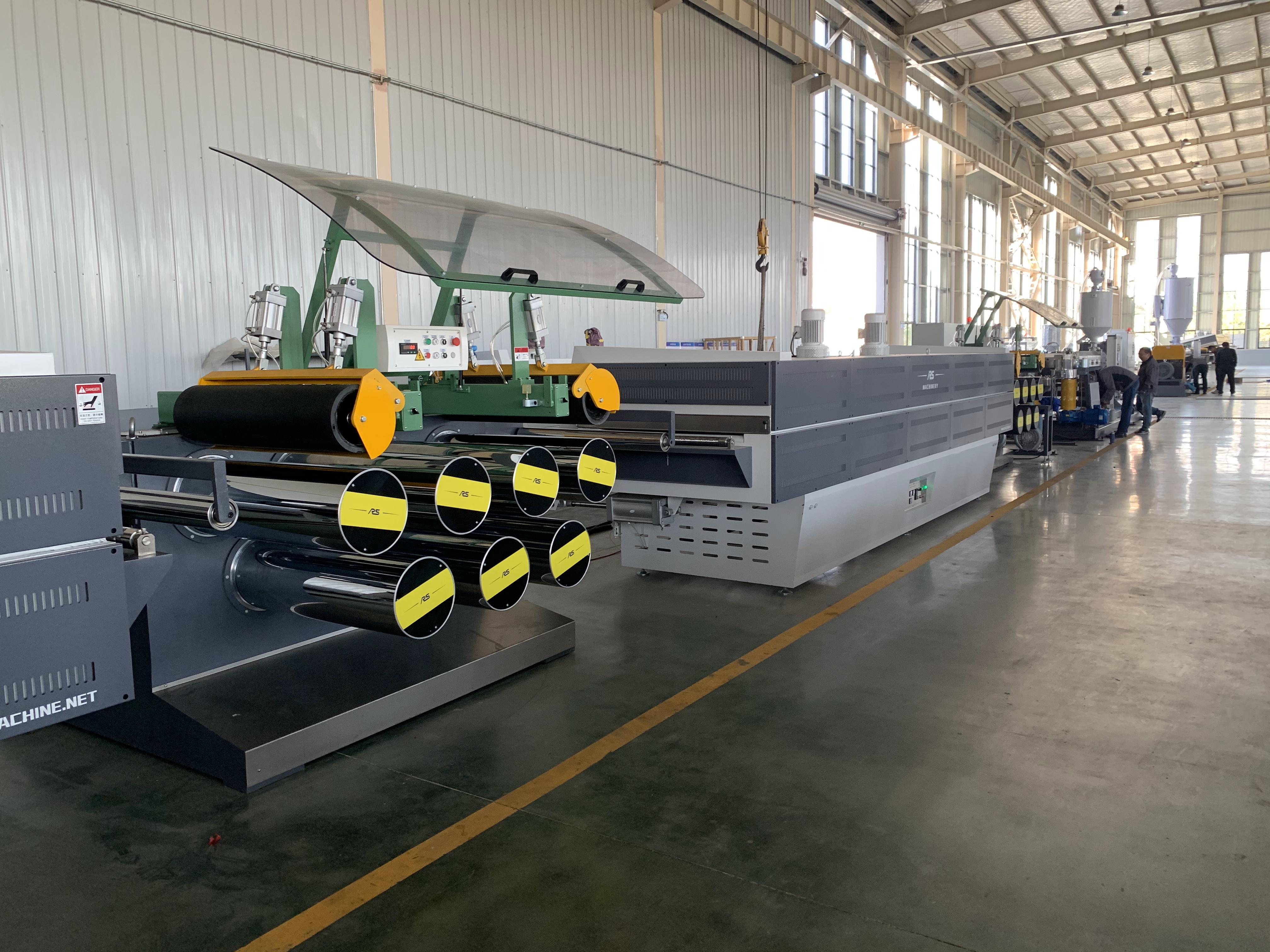

    Pictures:


    Quality 150kgh SS 304 Monofilament Extruder Machine PP Cement Fiber Use for sale
