1. Extruder: 1 set

(1) Screw dia.: 90mm; Rotation speed: 0～872rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET recycle

(4) Pressure feedback system which can adjust the screw speed automatically

(5) 50cc Metering pump:1 set

(6) Nozzle: 2 pieces with the disassembly support

2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel 316.

3. Seven roller Stretching unit A,

(1) Roller size: φ270×750×7,

(2) Power of motor: 5.5KW

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.

(3) Material is stainless steel 304 with heat preservation.

(4) Equip brush for water removal.

(5) Equip one moisture absorption device: 4KW

6. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,

(2) Power of motor: 15KW

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

7. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm

(4) Special design of hot air channel which make the temperature evenly.

8. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×750×7

(2) Power of motor: 15KW

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

9. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm

(4) Special design of hot air channel which make the temperature evenly.

10. Seven rollers stretching unit D

(1) Roller size: φ270×750×7

(2) Power of motor: 5.5KW

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

11. Lubricating system: 1 set

(1) Motor and reducer are from Taiwan CPG

12. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm

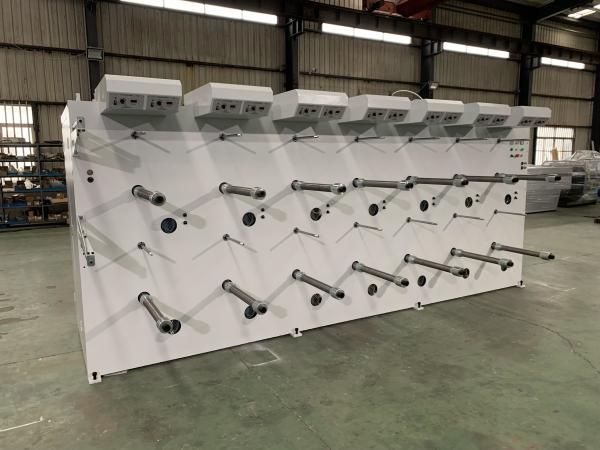

13. Winding collector:66 spindles

total capacity: 260KW,

total dimension: 40×2.6×3m,

Specification:

Picture:
