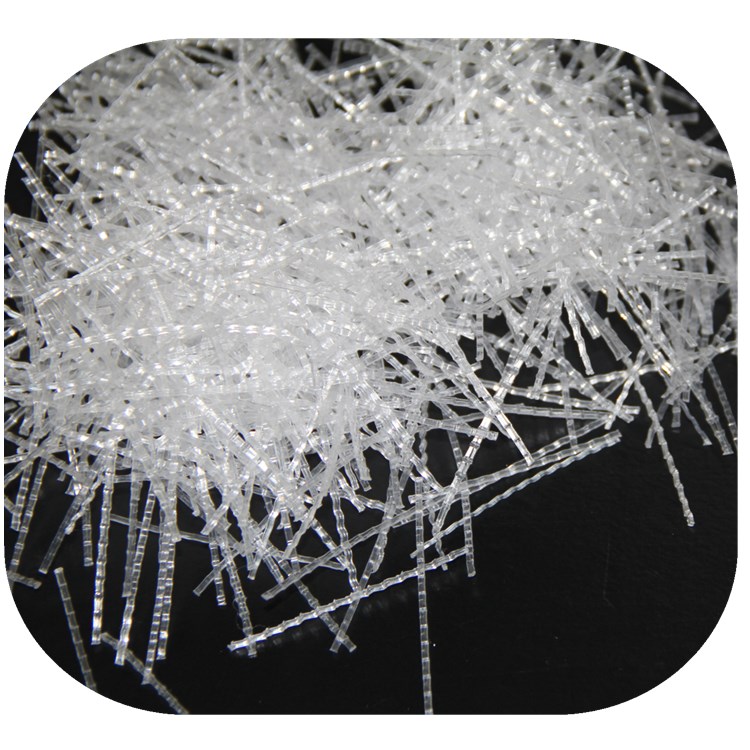

380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber

Changzhou Leap Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber from wholesalers

    Buy cheap 380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber from wholesalers
    • Buy cheap 380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber from wholesalers

    380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber

    Ask Lasest Price
    Brand Name : LEAP
    Model Number : RS
    Certification : CE/ISO90001
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 50 sets per year
    Delivery Time : 90 working days
    • Product Details
    • Company Profile

    380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber

    PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber In Bundls


    Product Description:

    1. Extruder: 1 set

    (1) Screw diameter: 90 mm, Rotation speed of screw: 0~60 rpm.

    (2) L:D: 33:1, Material of screw: 38CrMoALA;

    (3) Hard tooth reducer: Jiangsu Haoke Reducer Co., Ltd

    (4) Filter: Auto screen changer.

    (5) RKC Pressure automatic feedback system.

    (6) Material of barrel heater: Cast aluminium.

    (7) Electric heating round spinneret: 1 set

    (8) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.


    2. Cooling water tank: 1 set

    (1) The tank is made by SS 304.


    3. Seven roller stretching unit A

    (1) Seven roller variable diameter rollers, the working width 800mm,

    There are five rollers are covered with rubber to resist skidding.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.


    4. Double layer hot blast stretching oven: 1 set

    (1) Fan power: 2.2KW×4 sets

    (2) Heating power: 23KW×2

    (3) Oven length: 4000 mm


    5. Seven roller stretching unit B.

    (1) Seven roller variable diameter rollers, the working width 800mm.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.


    6. Single layers hot blast stretching oven: 1 set

    (1) Fan power of each oven: 2.2KW×2 sets

    (2) Heating power: 30KW

    (3) Oven length: 5000mm


    7. Seven roller stretching unit C.

    (1) Seven roller variable diameter rollers, the working width 800mm.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.


    8. Spindle winder: 2 spindles


    Specification:

    Screw diameterΦ90mm
    Raw materialPP ChipsFilament sizecustomzied
    Capacity125Kg/HFilament shapeCurved
    Screw L:D33:1Stretching unit3 sets
    Screw material38CrMoALAWindercustomzied
    Max linear speed120m/minInstillation power350Kw
    Nozzle holes70 holesOverall size38×2.7×2.8m

    Pictures:


    Quality 380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber for sale
