    0.25mm Monofilament Yarn Making Machine ISO90001 Certification

    Ask Lasest Price
    Brand Name : LEAP
    Model Number : RS
    Certification : CE/ISO90001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per year
    Delivery Time : 90 working days
    • Product Details
    • Company Profile

    0.25mm Monofilament Yarn Making Machine ISO90001 Certification

    Polyester Monofilament Extrusion Process for Paper Machine Clothing screen net 0.25mm


    Product Description:


    1. Extruder: 1 set

    (1) Screw diameter: 70mm, Rotation speed of screw: 0~80 rpm. Screw: Zhejiang Zhoushan.

    (2) L:D: 30:1, Material of screw: 38CrMoALA ,

    (3) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

    (4) Metering pump: 1 set, rotation speed: 0-45 rotation.

    (5) Customized hopper: 1 set


    2. Cooling water tank: 1 set

    (1) The tank is made by SS 304.


    3. Seven roller stretching unit A

    (1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.


    4. Overflow type hot water tank:1 set

    (1) Tank size: 4000mm

    (2) Heating power: 45KW in 2 zones,

    (3) Water circulating water pump 2 sets


    5. Seven roller stretching unit B

    (1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

    (2) Steel structure box with accurately grind gear makes the rollers run smoothly.


    6. Hot blast stretching oven: 1 set

    (1) Oven length: 4000 mm


    7. Seven roller stretching unit C, with brake resistor

    (1) Seven variable roller, material: Steel pipe with hard chrome plating.

    (2) Steel structure box with accurately grind gear makes the rollers run smoothly.


    8. Hot blast annealing oven: 2 sets

    (1) Heating power: 22.5kw

    (2) Special design of hot air channel.


    9. Seven roller stretching unit D.

    (1) Seven variable roller, material: Steel pipe with hard chrome plating.

    (2) Steel structure box with accurately grind gear makes the rollers run smoothly.


    10. Lubricating system: 1 set

    (1) Frequency control of speed


    11. Spindle winder: 180 spindles

    (1) Bobbin: Cops winder.

    (2) Winding motor: 5KG

    (3) Max design speed: 0-180m/min


    12. Waster yarn collectors: 1 set

    (1) Torque motor power: 80KG.cm


    Specification:


    Screw diameterΦ50mm
    Raw materialTPEEFilament size0.12-0.18mm
    Capacity40Kg/HFilament shaperound
    Screw L:D30:1Stretching unit4 sets
    Screw material38CrMoALAWinder128 spindles
    Max linear speed150m/minInstillation power200Kw
    Nozzle holes120 holesOverall size42×2.8×2.8m

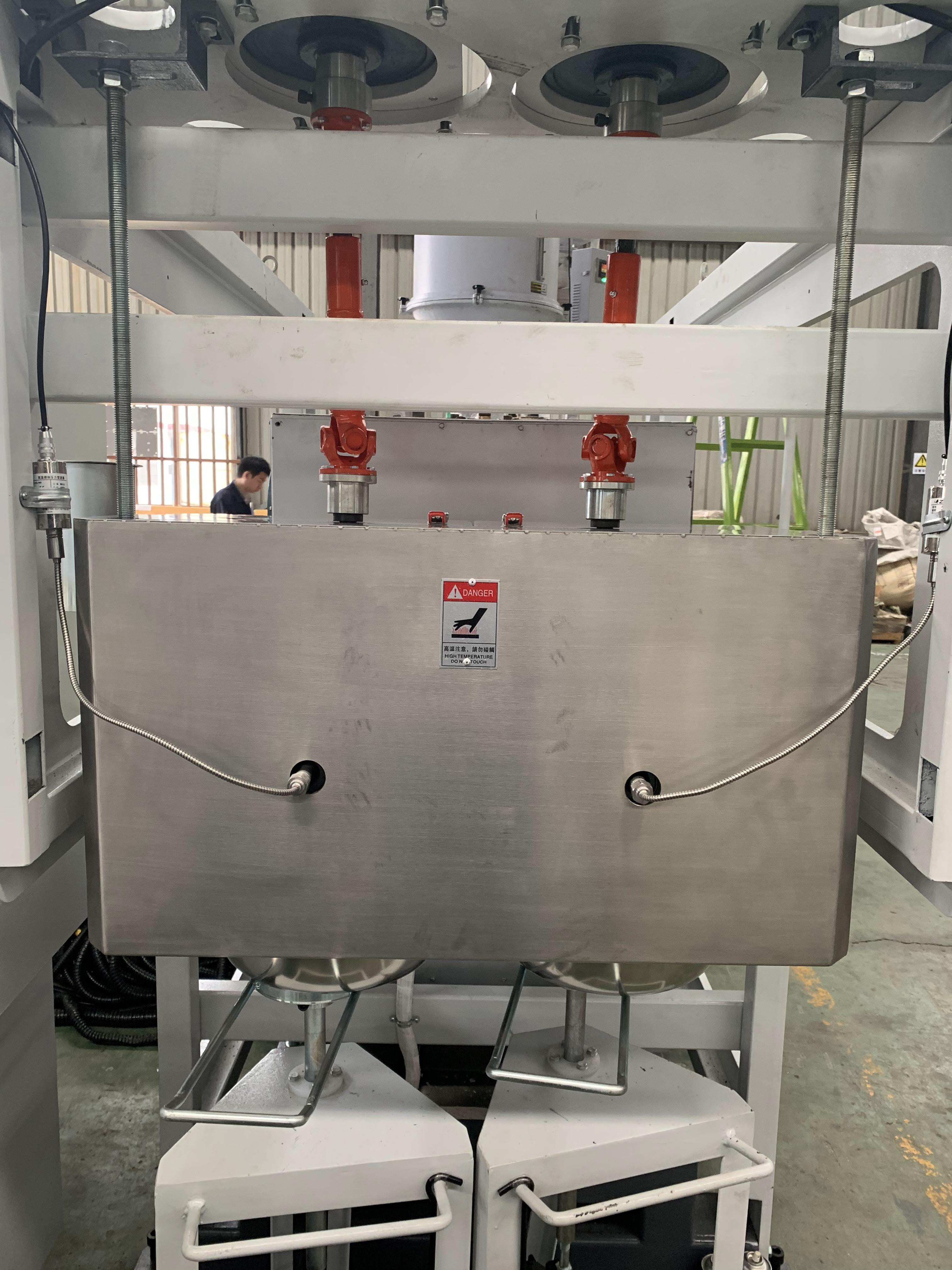

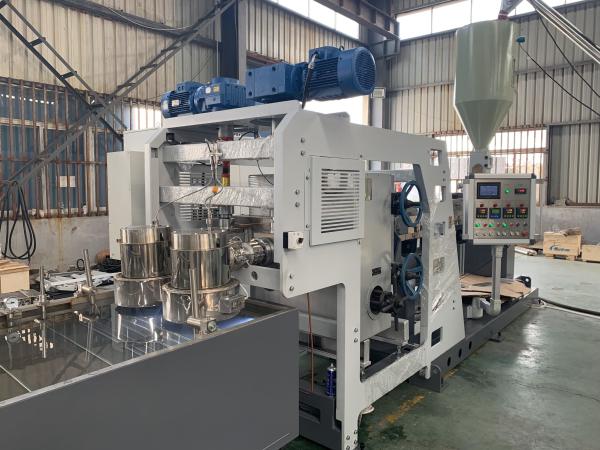

    Pictures:

    Quality 0.25mm Monofilament Yarn Making Machine ISO90001 Certification for sale
