    16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001

    Ask Lasest Price
    Brand Name : LEAP
    Model Number : RS90
    Certification : CE/ISO90001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 60 sets per year
    Delivery Time : 90 working days
    • Product Details
    • Company Profile

    16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001

    Rope Making Machine For 16mm Beige Nylon Fishing Rope


    Parameter:

    Product Name:

    16mm Beige Nylon Fishing Rope

    Yarn Deiner0.3mm
    Capacity:80kgh
    Screw diameter:80mm
    Rotation speed of screw:0~70 rpm
    Running capacity:150 KW


    Product Description:

    1. Extruder: 1 set

    (1) Screw diameter: 90mm,Screw speed: 0~72rpm.

    (2) L:D: 33:1, Screw material: 38CrMoALA ,

    (3) Pressure feedback system can adjust the screw speed automatically.

    (4) Far infraed barrel heater

    (5) Melt pump, rotation speed: 0-45 rotation.

    (6) Spinneret plate: 2 pieces


    2. Quenching tank: 1 set

    (1) The tank is made by SS 304.

    (2) Pushed and pulled in side way, the automatic lifting of tank.


    3. Dryer system:1 set


    4. Frist Seven roller stretching unit: 1 set

    (1) Five variable diameter rollers and two steel rollers.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.

    (3) Working height: 1100mm


    5. Double layers hot blast stretching oven: 1 set

    (1) Heating power: 23KW

    (2) Oven length: 5000 mm


    6. Second Seven roller stretching unit: 1 set

    (1) Seven variable diameter rollers with hard chrome plating.

    (2) Steel box with accurately grind gear makes the rollers run smoothly.

    (3) Working height: 1100mm


    7. Waster yarn collector: 1 set


    8. Spool winder:as client's requirements.

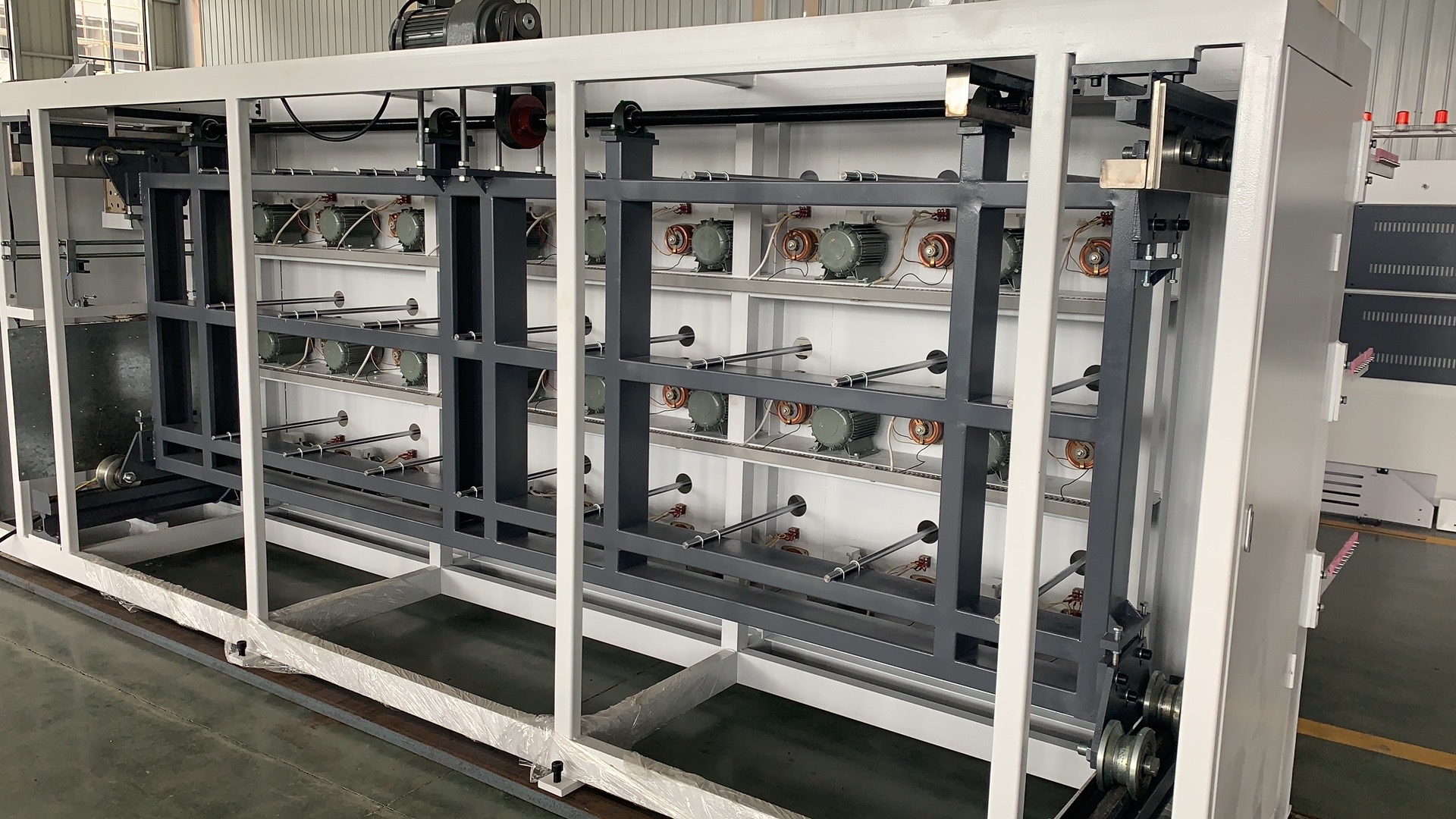

    ​Pictures:



    Quality 16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001 for sale
