(1) Main motor power: 45KW; Motor is from Siemens electric machine
Co., Ltd
(2) Screw diameter: 42mm; Rotation speed: 0～70rpm
(3) Screw material: CE-150, barrel material: CB-150
(4) L/D=48, total 12 section barrel.
(5) Hard tooth reducer: Jiangsu
(6) Pressure sensor and pressure gauges for spinneret
(7) Screw heater: Cast aluminium heating rings with stainless steel
insulation layer.
(8) Electrical heating spinneret device: 1 set
(9) Heater: Electric heating ring, heating power: 4kw
(10) Equip two hoppers for each material.
2. Quenching Tank:1 set
(1) Stainless Steel 304 tank
3. Seven roller Stretching unit A: 1 set
(1) Roller size: φ270×400×7, All rollers are heated roller.
(2) Equip one oil heating controller.
(3) Power of motor: 5.5KW
(4) Steel cabinet with accurately grind gear makes the roller run
smoothly.
(5) Reducer is from Jiangsu Guomao Reducer Co., Ltd.
(6) Built-out oil lubrication system which makes the gears run
steady.
4. Hot Air Oven:1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 4300 mm
(4) Special design of hot air channel which make the temperature
evenly.
5. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×400×7,
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
(5) The center height is 1100mm
6. Hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
7. Seven rollers stretching unit C: 1 set
(1) Roller size: φ270×400×7
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
8. Hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
9. Seven rollers stretching unit D: 1 set
(1) Roller size: φ270×400×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
10. Hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
11. Seven rollers stretching unit E: 1 set
(1) Roller size: φ270×400×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
12. Lubricating system: 1 set
13. Waster yarn collectors: 1 set
14. Winding collector: 2 spindles
Specification:
| Twin screw | Φ42mm |
| Raw material | PA610 | Filament size | 150D |
| Capacity | 30Kg/H | Filament shape | profile |
| Screw L:D | 48:1 | Stretching unit | 5 sets |
| Screw material | 38CrMoALA | Winder | 2 spindles |
| Max linear speed | 160m/min | Instillation power | 410Kw |
| Nozzle holes | 20 holes | Overall size | 53×2.6×2.8m |

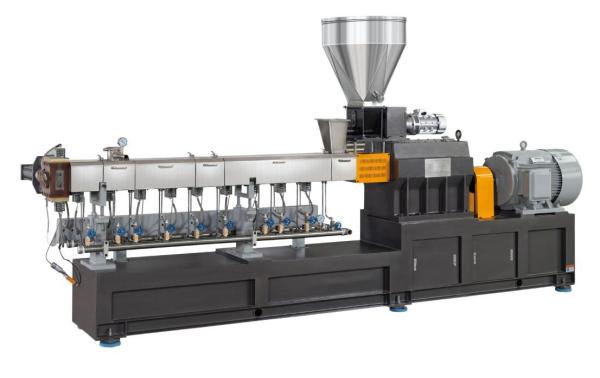

Picture:
