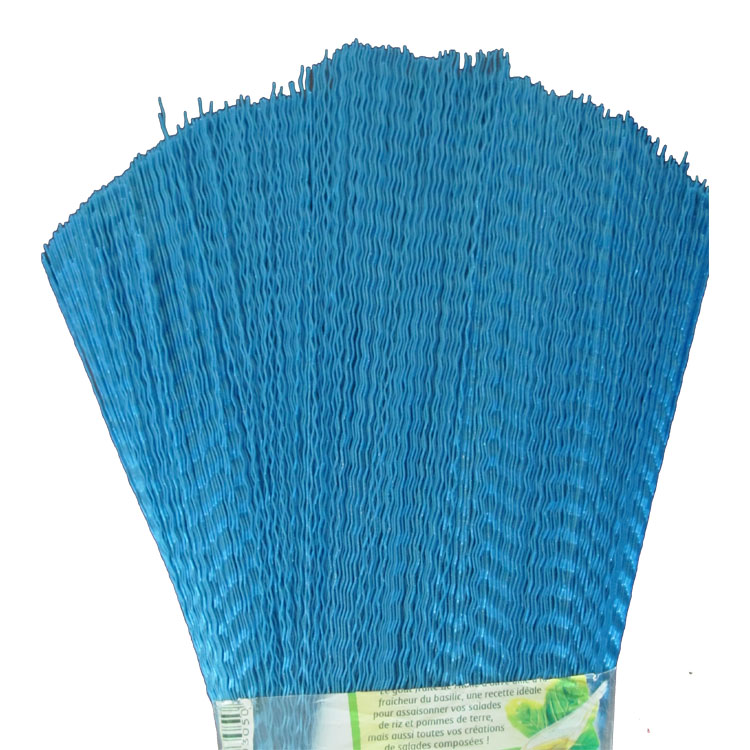

Brush Making Machine For 0.45 Mm PET Colored Flagged Bristle Filament

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) Pressure automatic feedback system.

(4) Metering pump 30cc, rotation speed: 0-45 rotation.

(5) Round spinneret: 1 set.

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Using heating pipe, power:18KW.

3. Seven roller stretching unit A

(1) Seven variable diameter rollers which made by stainless steel 304.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system. Bearings: TIMKEN-TWB.

4. Hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones

(3) The tank is made by SS 304.

(4) Water circulating water pump 2 sets

5. Seven roller stretching unit B

(1) Seven variable diameter rollers which made by steel pipe.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system. Bearings: TIMKEN-TWB.

6. Hot Air oven: 1 set

(1) Oven length: 4000 mm

(2) Special design of hot air channel.

7. Lubricating system: 1 set

8. Brush winder: 2 sets

        Changzhou Leap Machinery’s predecessor Changzhou Ruisheng Machienry is professional manufacturer for monofilament extruding machine. Mr. Zexue Wu, The President, has more than 20 years experience in the design and making of monofilament machinery.

Our Main product is Nylon/Polyester/PP/PE Monofilament making machine and design for whole plant projects.

Leap offers professional technology support and service to customer based on it's abundant expertise in manufacturing, design, and trading experience. Our working team has more than 50 high skilled personnel, well experienced and responsible to promote the working performance.

Leap insists on using the good material and parts to make the most durable and high performance machines. Every machine must pass strict and careful quality control system, and pass test running before shipping out to the customer.

Our products have been successfully sold to more than thirty countries.

        We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
